ROEDERS

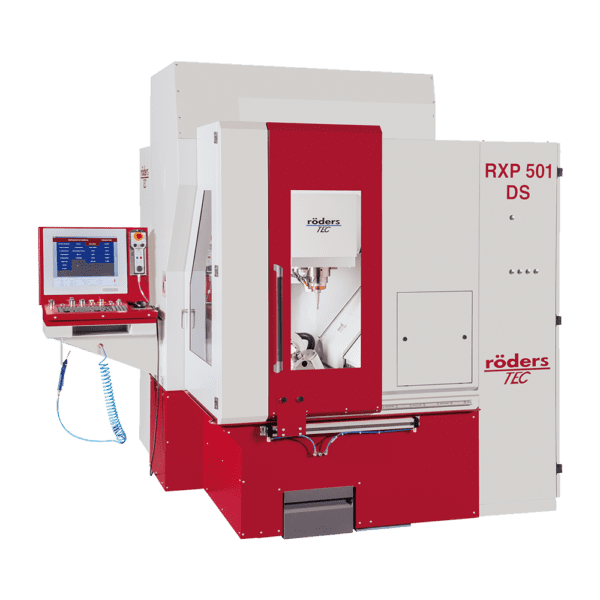

ROEDERS RXP501DS
Compact but rigid 5‑axis HSC machine
Large choice of machining spindles | With second bearing for swivel axis guaranteeing high stiffness
- Machining range: 500 mm x 500 mm x 300 mm
- Swivelling range: +/-115 degrees
- Rotation range: Almost unlimited
- Table size: 250 mm (integrated chuck optional)
- Workpiece weight: max. 60 kgFeed0–60,000 mm/min
- Milling spindle (standard): 42,000 rpm, 14 kW, HSK E40, maximum tool diameter 16 mm (others on request)
- Tool changer: 35 places for HSK E40 (chain changer – can be loaded during machining), optional more places integrated measuring laser
