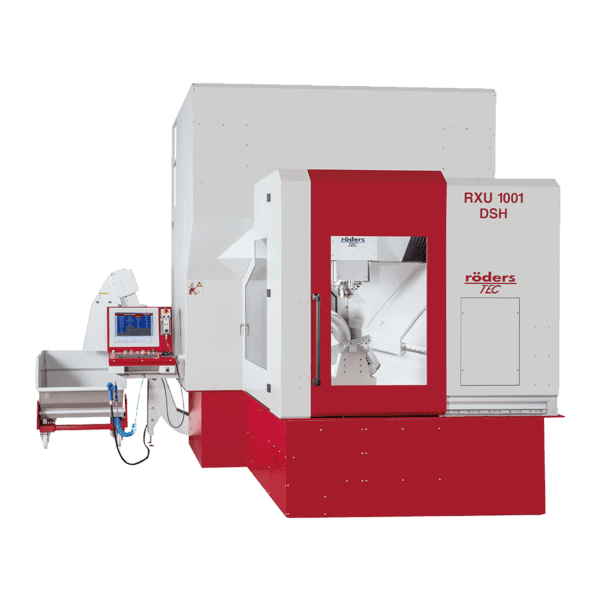

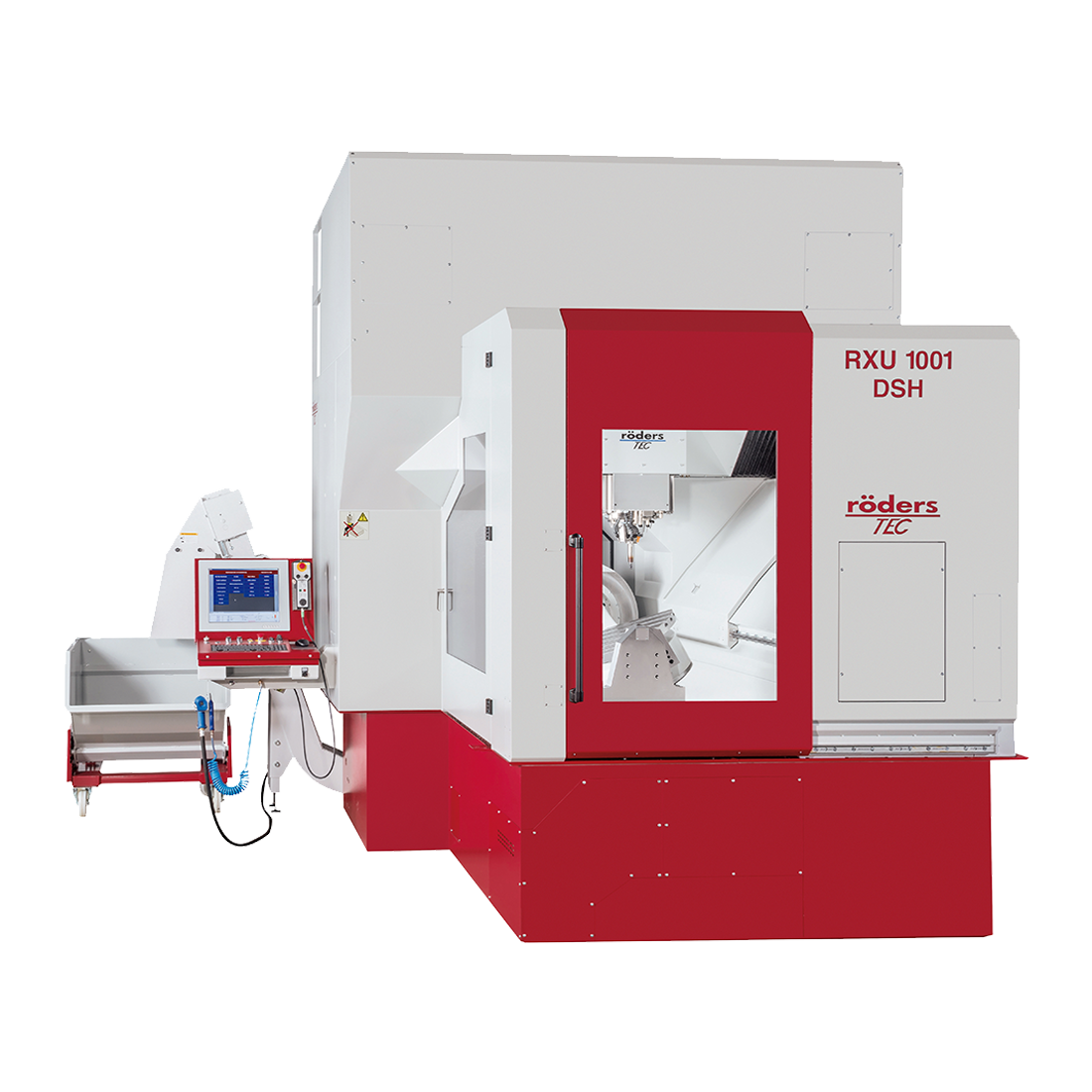

ROEDERS RXU1001DSH
5‑axis machine with QUADROGUIDE® for high roughing capacity, dynamics and precision
All axes with direct drives
Milling spindle may be chosen depending on the application, up to 101 Nm (S1) available
Compared to the RXU1000DSH the travel in X‑direction and the maximum workpiece diameter are increased, the offset of the C‑axis is higher
- Machining range: 800 mm x 855 mm x 500 mm
- Swivelling range: +/-115 degrees (others on request)
- Rotation range: Almost unlimited
- Table size: 400 mm round or 400 mm square, 600 mm round with two flattened sides or 600 mm round
- Workpiece weight: max. 800 kg
- Feed: 0–60,000 mm/min
- Milling spindle (standard): 24,000 rpm, 67 Nm (S1), HSK A63, maximum tool diameter 35 mm (others on request)
- Tool changer: 24 (rotary – can be loaded during machining) optional: 40 places or more
(chain changer – can be loaded during machining), integrated measuring laser
