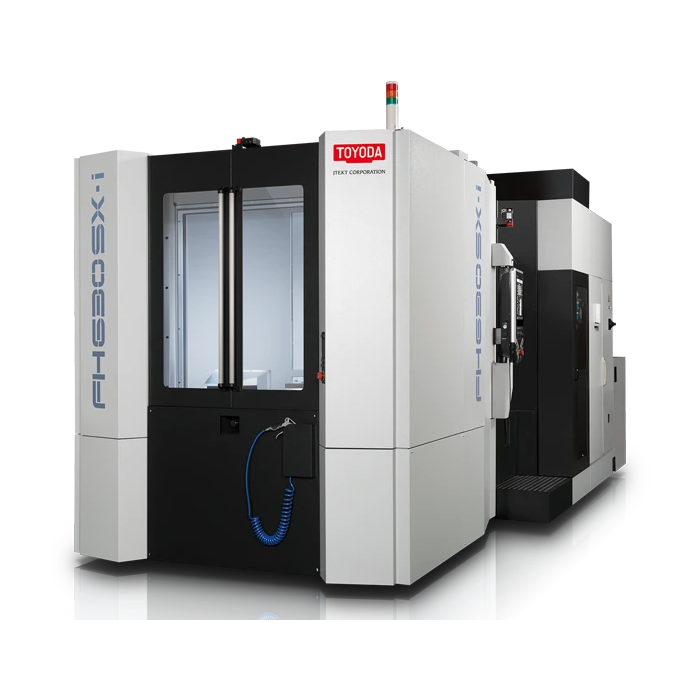

JTEKT FH630SX-i
High-Speed Horizontal Machining Center
The FH630SX-i is a powerful, high-speed horizontal machining center featuring an 8,000 RPM spindle, with the option of a 15,000 RPM high-torque spindle, and a rapid feedrate of 2,362 ipm (60 m/min). This machine has dual ballscrew drive on the Y and Z axes, and a Meehanite cast iron base for improved rigidity.
Pallet Size: 24.8″ x 24.8″ (630 mm x 630 mm)
Table Index: Full NC table (360,000 positions)
X-Axis Travel: 41.34” (1,050 mm)
Y-Axis Travel: 35.43” (900 mm)
Z-Axis Travel: 41.34” (1,050 mm)
